Tandems

Knowles Econo 6-Wheel Tandem Wagon Model W 200-6

The Model W 200-6 is ideal for use under forage boxes and other equipment.  Special steering design prevents swaying and fishtailing. Formed steel axle assemblies are rigidly reinforced and gusseted to give the best capacity for the weight. Heavy, round telescoping reach tube resists kinking or bending. Wide 72" treadwidth is ideal for safe hauling over rough terrain. Tandem axle assemblies are furnished with solid steel pivot shafts. Also, more features and specifications.

Knowles Econo 6-Wheel Tandem Wagon Model W 200-6



Knowles T1168M 6-Wheel Tandem 72 DPI.gif (6814 bytes)

Knowles Model T1168M 6-Wheel Tandem

Study the new and improved T1168M tandem farm wagon.  The main frame is constructed of heavy structural steel, rigidly braced and gusseted at all stress points.   Boxed rectangular walking beams assure straight trailing and maximum strength.   Solid steel pivot shafts oscillate on bronze bushings.  The T1168M is an ideal running gear for use under forage boxes and other heavy duty equipment.   Also, more features and specifications.




Knowles Super Tandem 6-Wheel Wagon Model TB450-1

This model is designed for large farming operations and construction use.  A flexible rear axle assembly equally divides the load on all tires.  This feature gives improved flotation with maximum load.  The TB450-1 is made of heavy structural steel rigidly reinforced at all stress points.   The front axle is equipped with a heavy-duty rocking bolster.  The truck-type steering mechanism has heavy steel trunnions, cold finished king pins, and thrust bearings.  All points of wear have renewable bushings, and the hubs rotate on oversized tapered bearings.  Also, more features and specifications.

Knowles Super Tandem 6-Wheel Wagon Model TB450-1 72 DPI.gif (6364 bytes)


Knowles Super Tandem 6-Wheel Wagon Model TB1800 72 DPI.gif (5241 bytes)

Knowles Super Tandem 6-Wheel Wagon Model TB1800

This model is designed for the large farming operation.  A flexible rear axle assembly equally divides the load on all tires.  This feature gives improved flotation with maximum load.  The TB 1800 is made of heavy structural steel rigidly reinforced at all stress points.   The front axle is equipped with a heavy-duty rocking bolster.  Steering mechanism is truck-type with heavy steel trunnions, cold finished king pins, and thrust bearings.  All points of wear have renewable bushings, and the hubs rotate on oversized tapered bearings.  Also, more features and specifications.


Knowles Model K 970M

The K970M is made for heavy-duty agricultural use where flotation is of utmost importance.  It will move heavy loads from soft fields with a minimum of draft, and can be towed and backed easier than a conventional four wheel type gear. A new and improved tandem axle assembly is now standard.  This new design feature permits operation in heavy mud without clogging.  Pivot point is 1" off center for reduced stress on tandem axles when turning. The unit is constructed of heavy welded structural steel with a high carbon tubular steel reach.  Spindles are made of 1045 cold finished steel and are pressed in- no welding on tandem spindles.  The hubs rotate on the latest type tapered bearings.  All points of wear are equipped with renewable bushings.  Also, more features and specifications.

Knowles Model K970M 72 DPI.gif (5306 bytes)

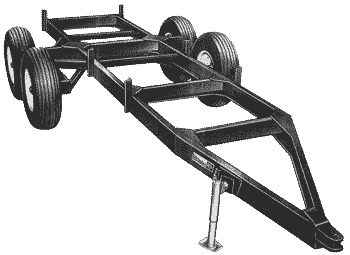

Knowles Heavy Duty Tandem Farm Wagon

The T760A is designed for feed and forage box equipment, and is also ideal for sprayer and fertilizer tanks. A unique axle suspension makes the wagon flexible for rough terrain. The wheels will not lose their alignment, even when heavily loaded and operated in muddy fields. The all steel welded frame is made of heavy 6" channel, rigidly cross braced and reinforced at all points. Spindles are welded to a heavy walking beam, which is equipped with an inner angle brace. The oscillating shaft is 1-" in diameter and is bearing mounted. Full 2" diameter spindles and heavy duty 6-bolt hubs are used on the T760A. 15 x 10.00 or 16 x 8.00 drop center wheels are standard equipment.  Also, more features and specifications.
