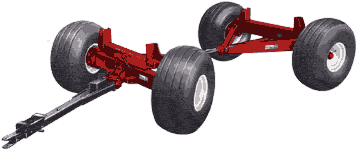

Model W2000 Super Wagon 11
40,000 lbs. Capacity
| The model W2000 will accommodate large grain boxes and other heavy duty hauling requirements. Note these features:* Frame constructed of 10" boxed structural steel. *Exclusive LEVEL LOAD BOLSTER absorbs undue stress which protects racks and boxes. *Extendible tubular steel tongue. *EASY LIFT tongue support reduces tongue weight when hitching. *Wide base wheels for large flotation tires and heavy duty truck size wheels for 22.5" truck tires. *Truck-type steering with king bolts. *Grease fittings at all wear points. *Thrust bearings in spindle trunnions for easier steering. |  |
GENERAL SPECIFICATIONS
| Capacity - 40,000 lbs. | Reach - 4" Diameter |
| Treadwidth - 88" | Tongue - 4" x 6" Structural Tubing, 82" Length |
| Axles - 10" Boxed Structural Steel | Bolster - Flexible Front |
| Spindles - 3-1/4" Diameter, 10,000 lbs. Capacity Rating | Hubs - Heavy Duty 8-Bolt, 10,000 lbs. Capacity Rating |
| Wheel Bolts - 3/4" x 2-5/8" Grade 8, Heat Treated | Wheel Bearings - 2.6245" & 2.2495" I.D. |
| Bolster Pins - 1-5/8" Diameter, Heat Treated | King Pins - 1-3/4" Diameter |
| Tie Rods - 1-1/4" Diameter Solid | Bushings - At All Wear Points |
| Stakes - Adjustable 10' to 14' | Steering - Truck Type |
| Wheels - 16.1 x 18 DC or 22.5 x 13 8-Bolt Truck Wheels | Rear Tow Hitch/Std. Equipment, Four-Wheel Inertia-Hydraulic Brakes/Std. Equipment |
| EASY LIFT Tongue Support/Std. Equipment | Weight w/21.5 x 16.1 Tires - 2910 lbs. |
EXTRA EQUIPMENT
| Pintle Eye Hitch | Safety Chains |
| Bolster Blocks | 21.5 x 16.1 Rib Implement |
| Extra Long Reach | 22.5 x 16.5 Truck Tires |
| Lights |
