Knowles Manufacturing Co.

W1600-1 Super Wagon

30,000 Lbs. Capacity

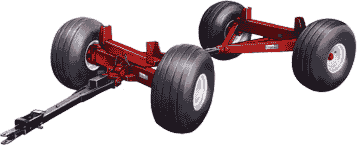

Knowles Super W1600-1 Wagon 72 DPI.gif (6563 bytes) The Model W1600-1 is designed for large gravity boxes and other agricultural and construction hauling.  Truck type steering with cold finished king bolts assures the user of long, trouble free service.  Thrust bearings make steering easier and reduce friction and wear.  The frame is made of boxed structural and formed steel.  An exclusive LEVEL LOAD BOLSTER protects racks, boxes and flat beds from undue stress.   Choose either an 82" tubular steel fixed length tongue or a rectangular extendible tongue with an EASY LIFT tongue support for easier hitching.  Wide base wheels are standard equipment.

GENERAL SPECIFICATIONS

**Capacity - 30,000 lbs. Steering - Truck Type
Treadwidth - 87" Wheelbase - Adjustable 10' to 14'
Axles - 8" Boxed Channel Wheels - 16.1 x 16 Drop Center
Spindles - 3" Diameter Bolster - Flexible Front
Hubs - Heavy Duty 8-Bolt Tie Rods - 1-1/4" Diameter Solid Stakes-Adjustable 42" to 44"
Wheel Bearings - Tapered Roller- 2.250" and 1.625" I.D. Tongue - 82" Tubular Steel Fixed Length or Rectangular Extendible
Wheel Studs - 3/4" Diameter Grade 8 Bushings - At All Wear Points
**Bolster Pins - 1-5/8" Diameter Heat Treated Reach - 4" Diameter
King Pins - 1-3/4" Diameter **When Equipped with Properly Rated Tires
EASY LIFT Tongue Support/Std. Equipment Weight Less Tires - 1766 lbs.
Rear Tow Hitch/Std. Equipment

EXTRA EQUIPMENT:

Two or Four-Wheel Inertia-Hydraulic Brakes Extra Long Reach
Pintle Eye Hitch Bolster Blocks
EASY RIDE Spring Stake Assemblies 16.1 x 18 DC or 22.5 x 13 Truck Wheels
Lights Safety Chains
Tires-19L x 16.1, 21.5L x 16.1
