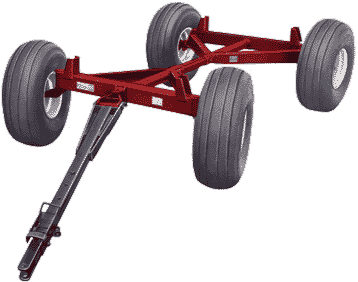

Model W1000A-8, Ten Ton Capacity Structural Steel Wagon
| The new and improved Model W1000A-8 has many exclusive features: 8-Bolt hubs and 2-1/4" diameter spindles are standard equipment. All points of wear are equipped with renewable bushings and grease fittings.The axles are made of 4x6 structural tubing and are rigidly braced with heavy formed channels.The steering mechanism is the latest (one-point) automotive type designed for short turning. Solid 1" diameter tie rods are located to rear of axle. A new and improved telescopic EASY HITCH tongue is standard equipment. All Knowles wagons are known for their ability to trail without whipping. |  |
GENERAL SPECIFICATIONS
| Capacity - 20,000 lbs. | Tie Rods - 1" Diameter to Rear of Axle |
| Treadwidth - 75" | Bolster Stakes -- 38" to42" |
| Spindles - 2-1/4" OD | Wheelbase - Adjustable from 8-12 Feet |
| Steering - Automotive Type | Weight Less Tires - 868 lbs. |
| Wheels - 15 x 10.00, 16 x 10.00, 16.1 x 11 or 16.5 x 8.25 Drop Center | All Points of Wear Equipped with Renewable Bushings |
| Hubs - Heavy Duty 8-Bolt | Thrust Washers on Spindles |
| Hub Bearings - Tapered Roller | Rear Tow Hitch - Standard Equipment |
| Reach Tube - 3-1/2" OD | Axles - 4 x 6 x 1/4" Tubing |
| Hinge Bolt - 1-1/8" Diameter | Tongue - Telescopic EASY HITCH |
EXTRA EQUIPMENT
| Bolster Blocks | Tires |
| Flexible Bolsters | EASY LIFT Tongue Support |
| EASY RIDE Spring Stake Assemblies | Rectangular Extendible Tongue -Extra Long |
| Lights | Safety Chains |
| Electric or Inertia-Hydraulic Brakes - Factory Installed Only | |
