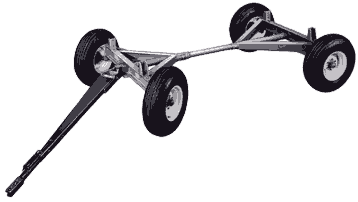

Model K808
STRUCTURAL STEEL WAGON
 |
The new model K808 is designed for heavy forage and grain box use.
It incorporates the latest short turning automotive front axle. The main framework
is constructed of structural steel and heavy wall tubing. The latest in wide base
15" or 16" wheels are supplied to accommodate flotation tires. A new pressed type steel stake with an adjustable setting is furnished as standard equipment. The heavy duty axle assemblies are made of 6" structural I-beam heavily braced and gusseted. Tie rods are located to the rear of the front axle. A Tongue long enough to accommodate large size forage boxes is available. All points of wear are equipped with renewable bronze bushings and the heavy duty 6-bolt hubs rotate on the latest in tapered roller bearings. |
GENERAL SPECIFICATIONS
| Capacity - 19,000 lbs. | Weight less tires - 684 lbs. |
| Hubs - Heavy Duty 6-bolt | Special short turning radius |
| Axles - 6" I-Beam | Treadwidth - 72" |
| Tie Rods - 7/8" C.F. | Bushings on all points of wear |
| Bearings - tapered roller | Reach - 2-7/8" Diameter high strength |
| Wheels - 15 x 8.00, 15 x 10.00 or 16 x 8.00 | Spindles - reinforced 2" Diameter 1045 steel |
| Tongue - fixed length | Wheelbase - adjustable from 8' to 14' |
| Stakes - adjustable 38" to 42" | Dust seals on hubs |
EXTRA EQUIPMENT
| Flexible Bolsters | Safety Chains |
| Brakes | Springs |
| EASY HITCH Tongue | EASY LIFT Tongue Support |
| Flotation Tires | Lights |
| Extra Long Reach |
