Knowles Fifth Wheel Wagon Models
1105X, 905X, and 705X
|
|

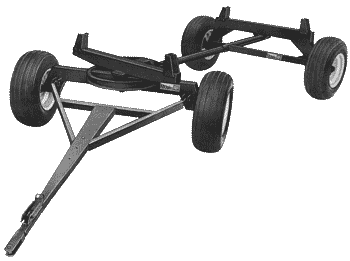

Knowles Fifth Wheel Wagon Models 1105X, 905X, and 705X These new and improved running gears are made of heavy structural steel, rigidly reinforced at all stress points. The fifth wheel, guided on four rollers, turns on a heat treated 1-3/4" diameter shaft. The shaft is fitted with renewable bushings and Zerk fittings; and a thrust bearing to carry the load. A new and improved EASY HITCH tongue is standard equipment. Heavy-duty, drop center wheels mount on tapered bearing hubs. These wagons are designed for heavy-duty applications where extremely short turning is necessary. This equipment is ideal for harvesting cotton and sugar cane. It can also be used under heavy forage boxes and cattle feeding equipment. |
Specifications
| Model 1105X | Model 905X | Model 705X |
| Weight less Tires...919 lbs. | Weight less Tires...871 lbs. | Weight less Tires...721 lbs. |
| Capacity..........22,000 lbs. | Capacity..........18,000 lbs. | Capacity..........14,000 lbs. |
| Axle Assemblies.............. Boxed Structural Steel | Axle Assemblies.............. Boxed Structural Steel | Axle Assemblies.............. Boxed Structural Steel |
| Reach...3-1/2"Dia.-Adjustable Length | Reach...3" Dia. x .276 - Adjustable Length | Reach...3" Dia. x .203 - Adjustable Length |
| Bolster....High Clearance Formed Steel | Bolster....High Clearance Formed Steel | Bolster....High Clearance Formed Steel |
| Treadwidth.....................76" | Treadwidth.....................72 | Treadwidth.....................72 |
| Stakes......Adjustable from 38" - 42" | Stakes......Adjustable from 38" - 42" | Stakes......Adjustable from 38" - 42" |
| Spindles........2-1/4" High Strength Steel | Spindles........2" High Strength Steel | Spindles........1-3/4" High Strength Steel |
| Tongue..........Tapered and Adjustable in length | Tongue..........Tapered and Adjustable in length | Tongue..........Tapered and Adjustable in length |
| Fifth Wheel...........Formed Channel with rollers | Fifth Wheel...........Formed Channel with rollers | Fifth Wheel...........Formed Channel with rollers |
| Streering ....1-3/4" Shaft with Bushings and Thrust Bearing | Streering ....1-3/4" Shaft with Bushings and Thrust Bearing | Streering ....1-3/4" Shaft with Bushings and Thrust Bearing |
| Hubs......Heavy 8-Bolt with Tapered Bearings | Hubs......Heavy 6-Bolt with Tapered Bearings | Hubs......Heavy 6-Bolt with Tapered Bearings |
| Wheels...........15 x 10.00 DC | Wheels..........15 x 8.00 or 15 x 10.00 DC | Wheels..........15 x 6.00 or 5 x 8.00 DC |
| Ground Clearance with 12.5L x 15 Tires | Ground Clearance with | Ground Clearance with |
Extra Equipment
| Brakes | Safety Chains |
| Extra Long Reach | Lights |
| Tires | 16" and 20" Wheels |
