Harrows

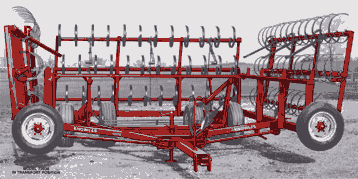

Knowles 30', 34' and 38' Wheel Mounted Spring Tooth Harrows

2" x 2" Tooth Cross Bars. Size of Tooth-1-3/4" x 5/16" x 39". Heavy Duty Tubular Tongue and Frame. Single Wing Support Tire on Each Wing. Variable Length Tongue insert for Each Width. Dual 12.5L x 15 8-Ply Tires for Added Flotation. Wing Sections are Easily Moved to 90 degrees for Transport. Depth Control Levers. 23" Tooth Bar Spacing. Center Mounted Jack Stand. Heavy Duty Replaceable Front and Rear Wear Shoes. Heat Treated Teeth with Holes for Replacement Points.  Also, more features and specifications.

Knowles 30',34', and38' Wheel Mounted Spring Tooth Harrows 72 DPI.gif (16714 bytes)


Knowles Series SW 720 Wheel Mounted Spring Tooth Harrow

Knowles Series SW720 Wheel-Mounted Spring Tooth Harrow 72 DPI.gif (6402 bytes)

Knowles Series SW720 Wheel-Mounted Spring Tooth Harrow in Transport Position 72 DPI.gif (15228 bytes)

Sections raise hydraulically for easy trash removal and backing up. Sections are easily moved to 90 degrees for transport. Heavy duty tubular frame is reinforced at all stress points. Heavy wear shoes are provided for longer life. Heat treated spring teeth resist wear and breakage. Size of tooth - 1-3/4" x 5/16" x 39". Teeth require 1/2" mounting bolts. 3/8" holes provided in teeth for replacement points on 2" centers. Sections are joined together with 1" diameter bolts. Jackstand for easier hitching is standard equipment. 15" wheels with large flotation type tires are standard. A rugged adjustable hitch is provided to fit tractor draw bar. 23" tooth bar spacing. Also, more features and specifications.

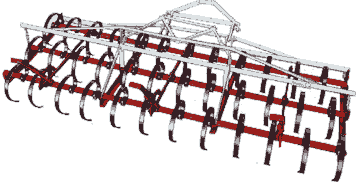

Knowles Series H Spring Tooth Harrows 3-Point Hitch Pull Type

This is an all new high quality, ruggedly designed harrow that will give many years of satisfactory service.  It can be converted from a three-point hydraulic lift type to a trailing or a pull type machine by removing a tee handle pin.  With this arrangement, two different requirements for spring tooth harrows can be met with a single model.  Also, more features and specifications.

Knowles Series H Spring Tooth Harrow 3-Point Hitch-Pull Type 2 72 DPI.gif (7704 bytes)
